대표 : 김세완 (Se Wan Kim), 박종익 (Jong Ik Park)
주소 : 서울시 금천구 가산디지털1로 75-24, 1310호
전화 : (02) 896-9474(대) 팩스 : (02) 896-9376/5553
Address : 1310, IS BIZ Tower, 75-24, Gasan digital 1-ro, Geumcheon-gu,
(주)삼에스코리아 Seoul, 08589 Korea
Tel : +82-2-896-9474 Fax : +82-2-896-9376/5553
3S KOREA CO., LTD. www.3sref.com

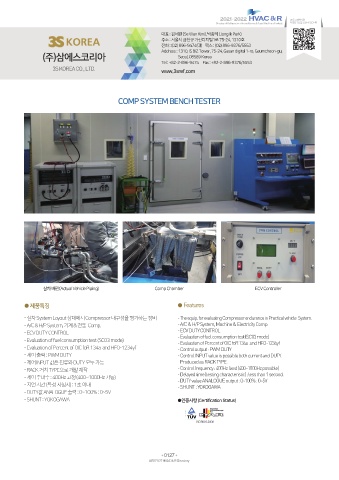

COMP SYSTEM BENCH TESTER

실차 배관(Actual Vehicle Piping) Comp Chamber ECV Controller

● 제품특징 ● Features

- 실차 System Layout 상태에서 Compressor 내구성을 평가하는 장비 - The equip. for evaluating Compressor endurance in Practical vehicle System.
- A/C & H/P System, 기계 & 전동 Comp. - A/C & H/P System, Machine & Electricity Comp.
- ECV DUTY CONTROL
- ECV DUTY CONTROL
- Evaluation of fuel consumption test (SC03 mode)
- Evaluation of fuel consumption test (SC03 mode)
- Evaluation of Percent of OIC foR 134a and HFO-1234yf
- Evaluation of Percent of OIC foR 134a and HFO-1234yf - Control output : PWM DUTY
- 제어 출력 : PWM DUTY - Control INPUT value is possible both current and DUTY.
- 제어 INPUT 값은 전류와 DUTY 모두 가능 - Produced as RACK TYPE.
- RACK 거치 TYPE으로 개발 제작 - Control frequency : 400Hz fixed (400~1000Hz possible)
- Delayed time (testing characteristic) : less than 1 second.
- 제어 주파수 : 400Hz 고정 (400~1000Hz 가능)
- DUTY value ANALOGUE output : 0~100% : 0~5V
- 지연 시간 (특성 시험시) : 1초 이내
- SHUNT : YOKOGAWA
- DUTY값 ANALOGUE 출력 : 0~100% : 0~5V
- SHUNT : YOKOGAWA ●인증사항(Certification Status)

ISO9001:2000
