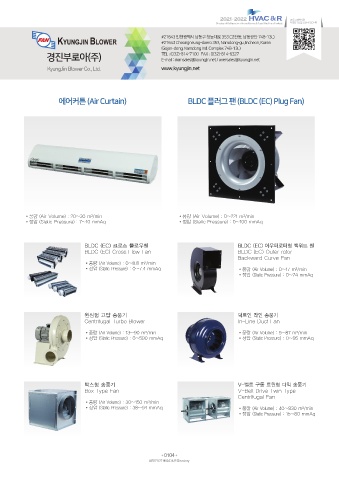

Page 106 - ebook

2021∙2022 hvac & r
23ਸ झபೞदݶ
؊ ݆਷ ੿ࠁܳ ࠁप ࣻ ੓णפ׮

#21643 인천광역시 남동구 청능대로 353 (고잔동, 남동공단 74B-13L)
#21643 Cheongneung-daero 353, Namdong-gu, Incheon, Korea
(Gojan-dong, Namdong Ind. Complex 74B-13L)
경진부로아(주) TEL : (032)-814-7100 FAX : (032)-814-6327
E-mail : domsales@kyungjin.net / oversales@kyungjin.net
KyungJin Blower Co., Ltd. www.kyungjin.net

에어커튼 (Air Curtain) BLDC 플러그 팬 (BLDC (EC) Plug Fan)

•풍량 (Air Volume) : 20~30 m 3 /min •풍량 (Air Volume) : 0~221 m 3 /min
•정압 (Static Pressure) : 7~10 mmAq •정압 (Static Pressure) : 0~100 mmAq

BLDC (EC) 크로스 플로우휀 BLDC (EC) 아우터로터형 백워드 휀
BLDC (EC) Cross Flow Fan BLDC (EC) Outer rotor
Backward Curve Fan
•풍량 (Air Volume) : 0~8.8 m /min
3
•정압 (Static Pressure) : 0~7.4 mmAq •풍량 (Air Volume) : 0~17 m 3 /min
•정압 (Static Pressure) : 0~74 mmAq

원심형 고압 송풍기 덕트인 라인 송풍기
Centrifugal Turbo Blower In-Line Duct Fan
•풍량 (Air Volume) : 13~90 m /min •풍량 (Air Volume) : 5~87 m /min
3
3
•정압 (Static Pressure) : 0~590 mmAq •정압 (Static Pressure) : 0~95 mmAq

박스형 송풍기 V-벨트 구동 트윈형 다익 송풍기
Box Type Fan V-Belt Drive Twin Type
Centrifugal Fan
•풍량 (Air Volume) : 30~150 m /min
3
•정압 (Static Pressure) : 38~94 mmAq •풍량 (Air Volume) : 40~830 m 3 /min
•정압 (Static Pressure) : 15~80 mmAq
