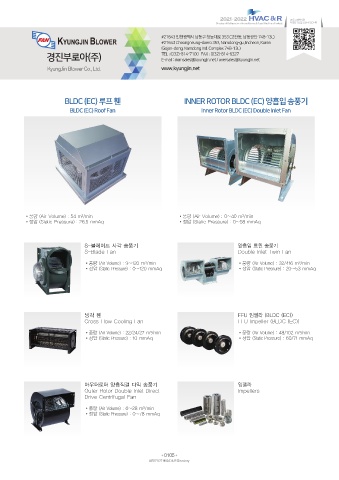

Page 107 - ebook

2021∙2022 hvac & r 23ਸ झபೞदݶ
؊ ݆਷ ੿ࠁܳ ࠁप ࣻ ੓णפ׮

#21643 인천광역시 남동구 청능대로 353 (고잔동, 남동공단 74B-13L)
#21643 Cheongneung-daero 353, Namdong-gu, Incheon, Korea
(Gojan-dong, Namdong Ind. Complex 74B-13L)
경진부로아(주) TEL : (032)-814-7100 FAX : (032)-814-6327
E-mail : domsales@kyungjin.net / oversales@kyungjin.net
KyungJin Blower Co., Ltd. www.kyungjin.net

BLDC (EC) 루프 휀 INNER ROTOR BLDC (EC) 양흡입 송풍기

BLDC (EC) Roof Fan Inner Rotor BLDC (EC) Double Inlet Fan

•풍량 (Air Volume) : 54 m 3 /min •풍량 (Air Volume) : 0~40 m 3 /min
•정압 (Static Pressure) : 26.5 mmAq •정압 (Static Pressure) : 0~58 mmAq

S-블레이드 사각 송풍기 양흡입 트윈 송풍기
S-Blade Fan Double Inlet Twin Fan

•풍량 (Air Volume) : 9~120 m /min •풍량 (Air Volume) : 32/416 m /min
3
3
•정압 (Static Pressure) : 0~120 mmAq •정압 (Static Pressure) : 20~53 mmAq

냉각 휀 FFU 임펠라 (BLDC (EC))
Cross Flow Cooling Fan FFU Impeller (BLDC (EC))
•풍량 (Air Volume) : 22/24/27 m /min •풍량 (Air Volume) : 48/102 m /min
3
3
•정압 (Static Pressure) : 10 mmAq •정압 (Static Pressure) : 60/71 mmAq

아우터로터 양흡직결 다익 송풍기 임펠라
Outer Rotor Double Inlet Direct Impellers
Drive Centrifugal Fan

•풍량 (Air Volume) : 6~28 m 3 /min
•정압 (Static Pressure) : 0~78 mmAq
